Builder: Davidson Building Ltd
Photography: Simon Devitt

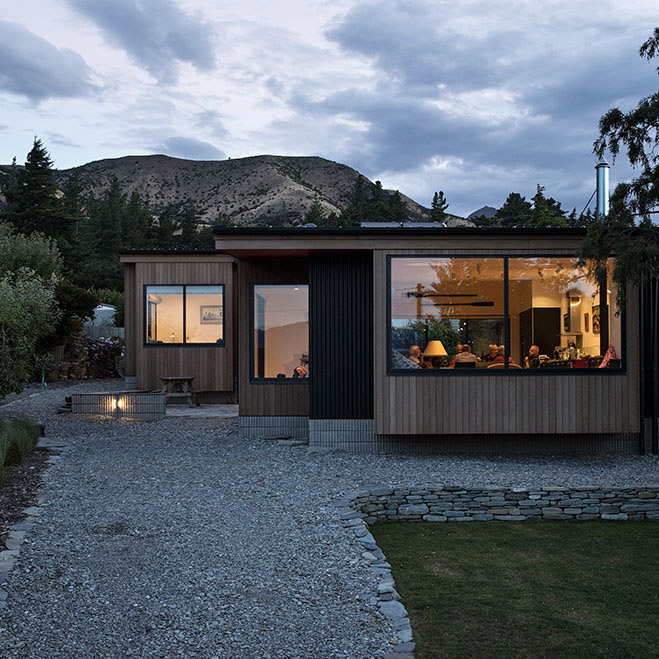

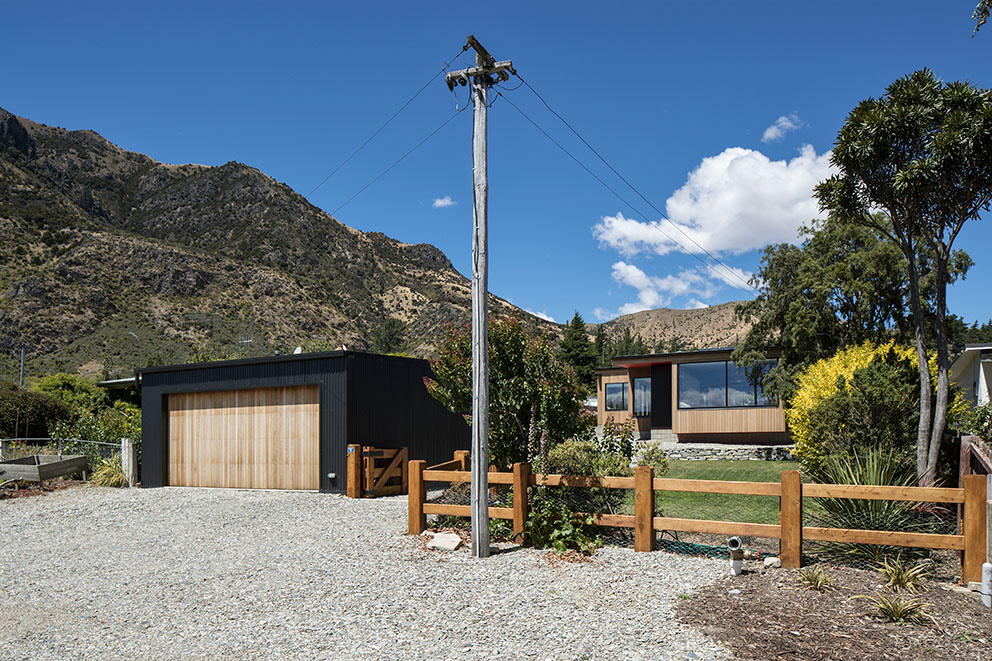

Located on the shores of Lake Hawea - the Gardner bach, a small 1950’s building that the Gardner family had been frequenting for over 30 years from their home base in Dunedin – is now replaced with the Gardner House.
The brief was for comfort filled house that fitted the site in scale, took advantage of the views and offered different sheltering options to suit the changeable alpine climate.
The site is long and narrow with a rising slope from the lake front to the south.

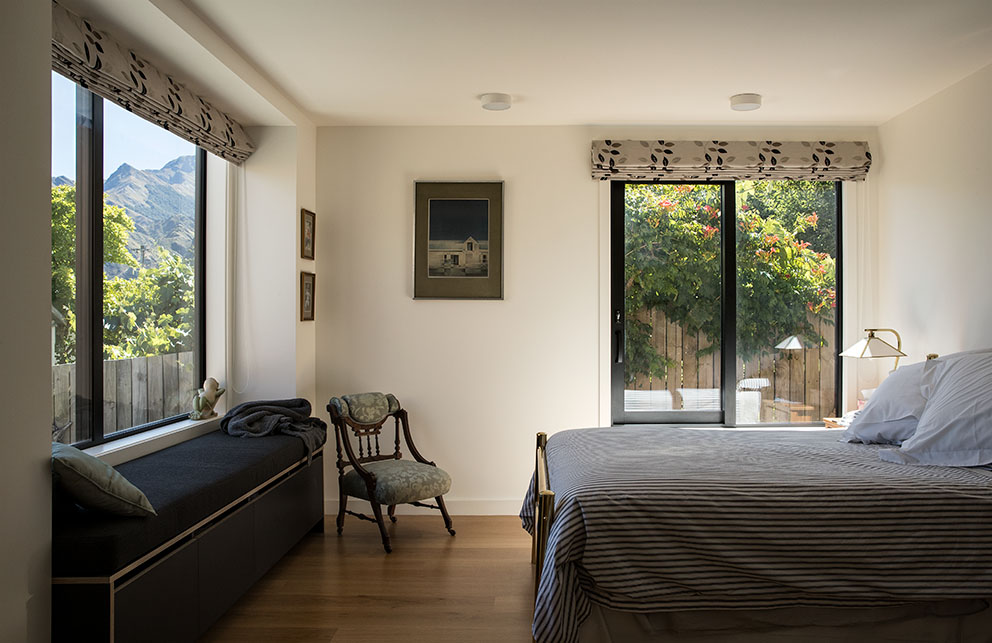

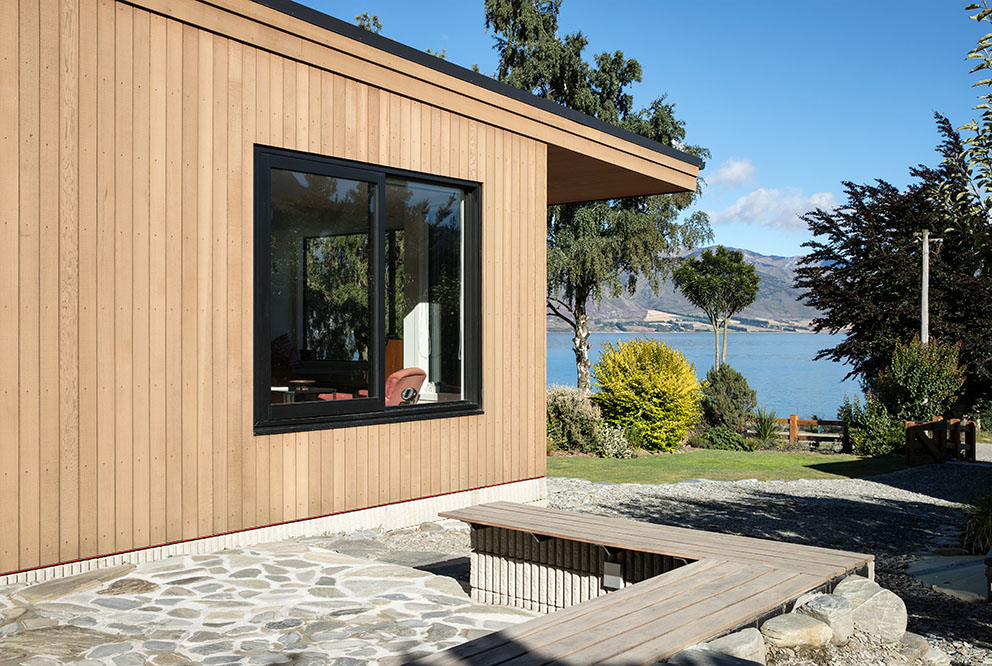

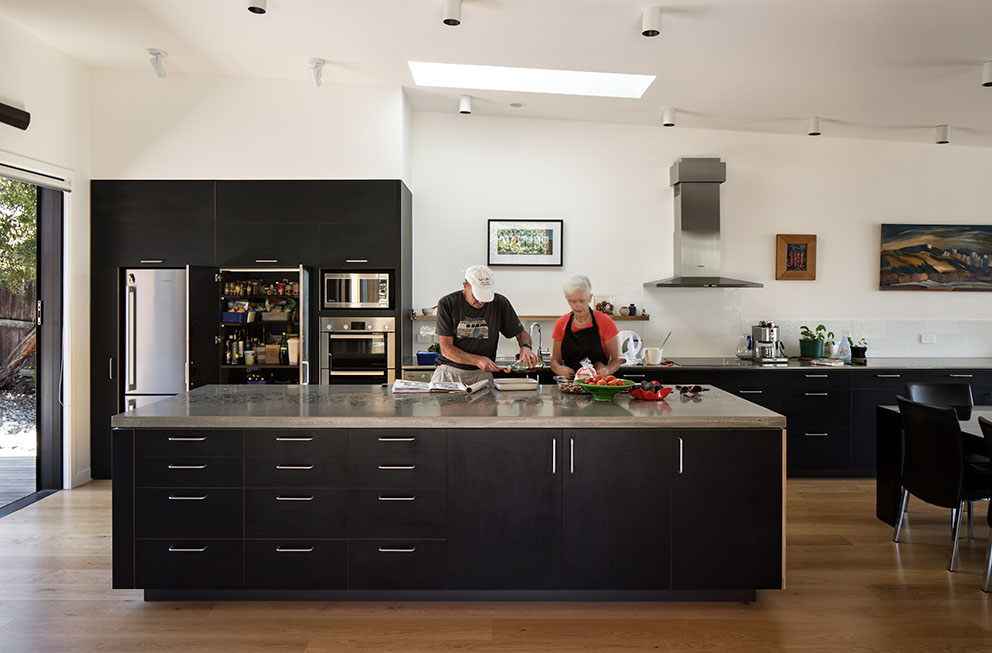

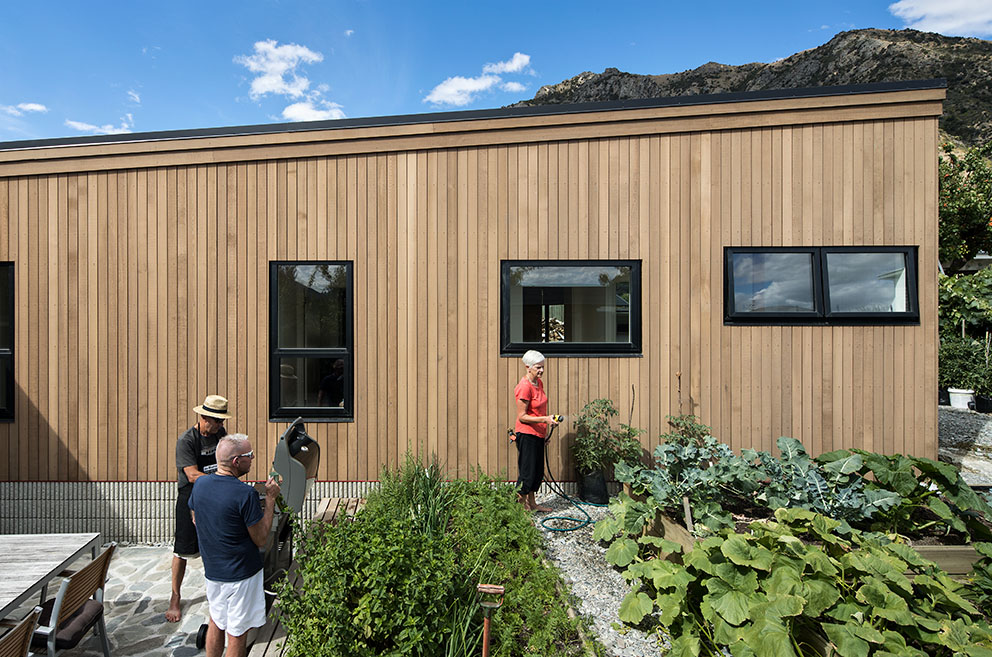

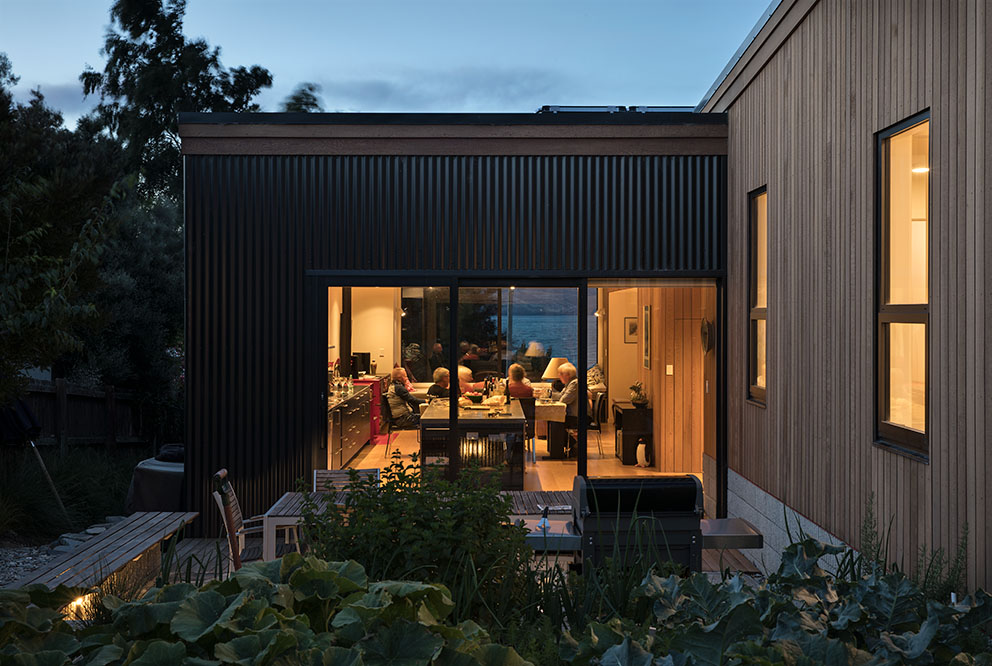

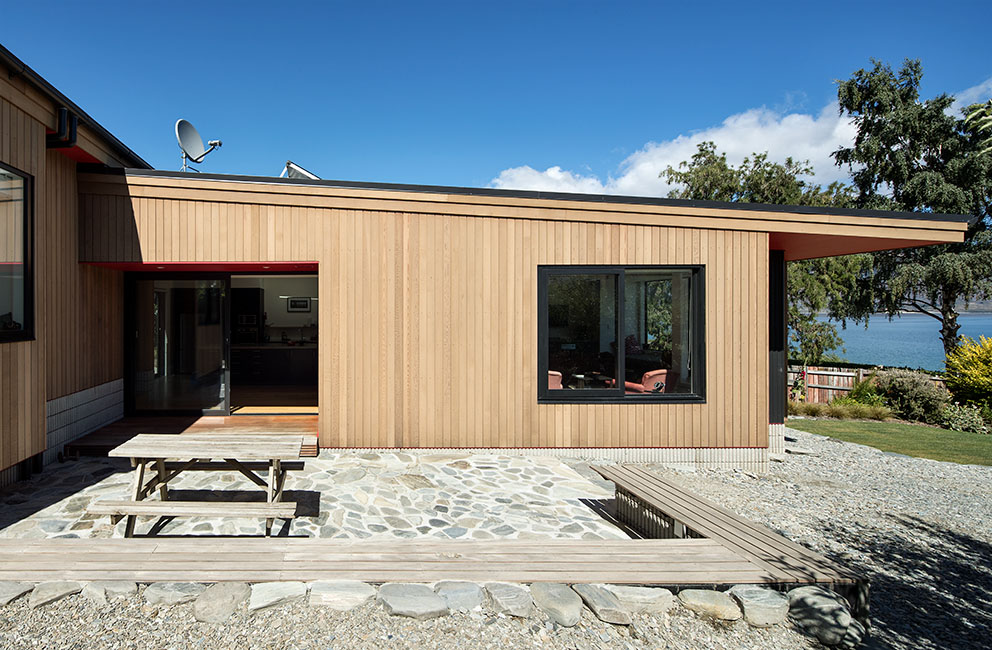

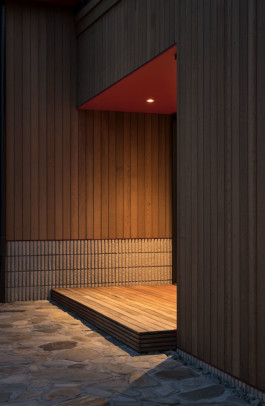

Two wings -private & public are offset to set up exterior courtyards forming morning & evening areas – with the southwest courtyard offering shelter from the lake wind while retaining a view through the house.

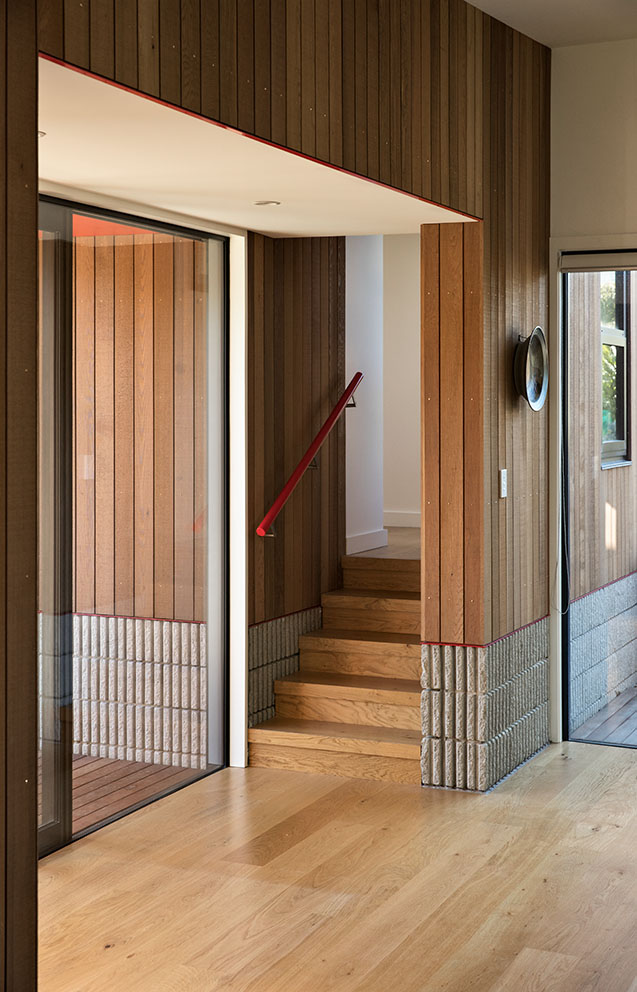

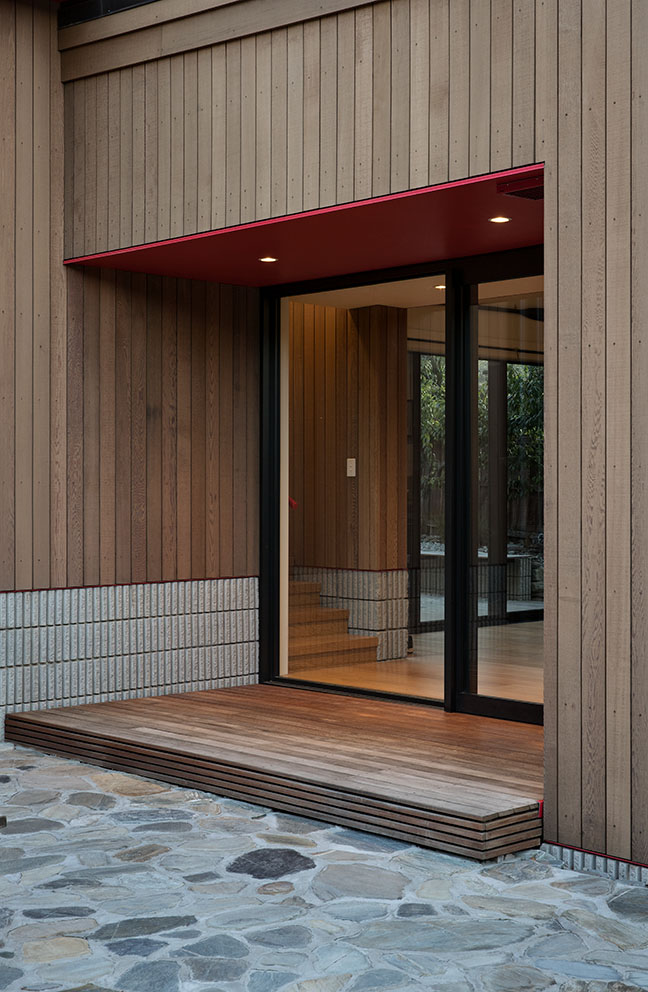

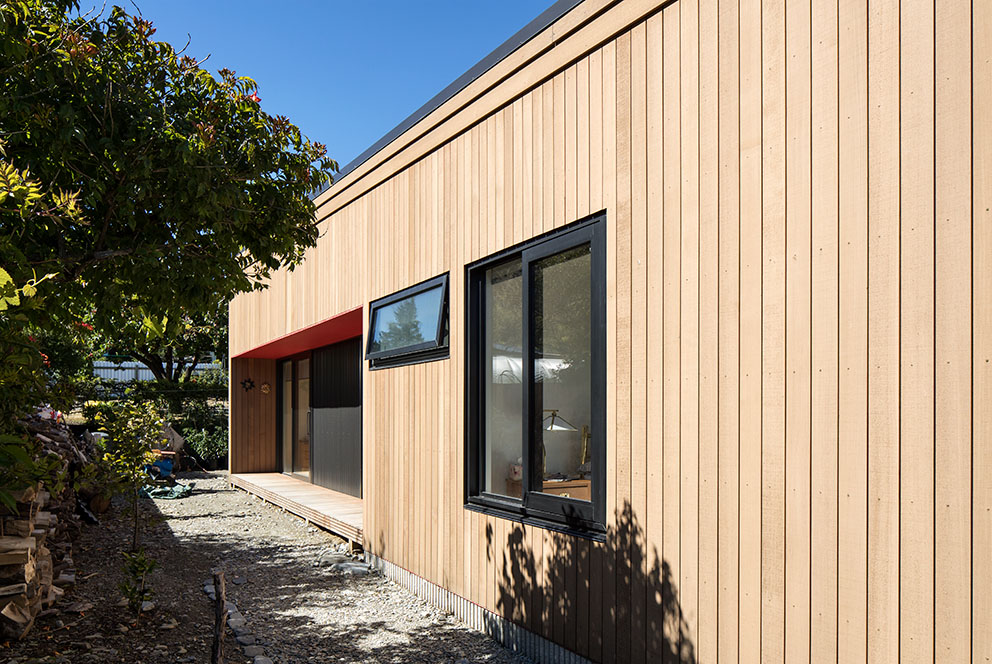

Materials were chosen for their context appropriateness and durability – and arranged economically.
The interior environment is controlled by a substantial level of insulation within two framing layers, a vapour check between and careful low thermal bridge detailing - resulting in a blower door test result of 0.44 1/h at 50Pa. A MHVR system is installed to recover heat from extracted air and provide fresh air to the interior.
The owners are enjoying their new house on the site they know so well - through superior interior comfort levels while keeping and re-framing the all familiar views.
2017 NZIA Southern Architecture Award
